Description

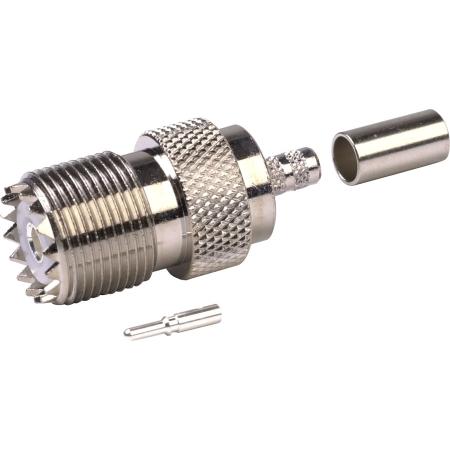

RF INDUSTRIES UHF female connector for RG58 cables. Nickle plated body silver plated center pin. Crimp center pin and ferrule.
MFG Part Number: RFU-527
UHF Female-RG58,141
In Stock - Qty: 65All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 2.00 × 1.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFU-527 |
| GTIN | 729198792152 |
Manufacturer - RF Industries
Install - 441740(1),485797(2)
For Cable - RG58, 141
Insulator Material - Delrin
Strip Insulation to End - .165
Strip Shield to End - .210
Center Pin Type - Crimp
RF Impedance - 50 Ohms
Frequency Range - 0-500 MHz
Max Voltage/Pwr - 500 RMS
Material (Pin) - Silver
Qty/ Uom - 1 Each
Strip Jacket to End - .535
RF Connector Body Style - Straight
RF Connector - UHF Female
RFU-527-Product-Drawing
Install - 441740(1),485797(2)
For Cable - RG58, 141
Insulator Material - Delrin
Strip Insulation to End - .165
Strip Shield to End - .210
Center Pin Type - Crimp
RF Impedance - 50 Ohms
Frequency Range - 0-500 MHz
Max Voltage/Pwr - 500 RMS
Material (Pin) - Silver
Qty/ Uom - 1 Each
Strip Jacket to End - .535
RF Connector Body Style - Straight
RF Connector - UHF Female
RFU-527-Product-Drawing
