Description

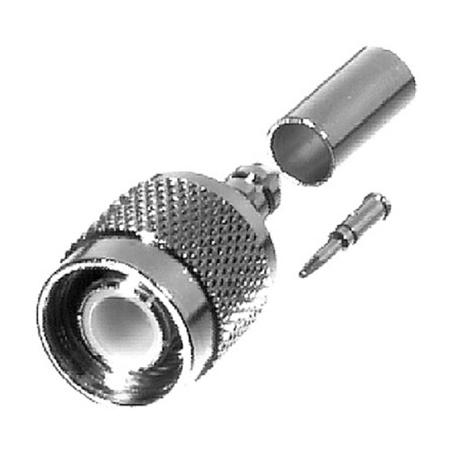

RF INDUSTRIES TNC male connector for RG174/URG316/U RG188 cables. Nickel plated body. Gold center pin. Crimp center pin crimp on braid.
MFG Part Number: RFT-1202-3
TNC Male Crimp-RG174, 316
In Stock - Qty: 31All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.03 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFT-1202-3 |
| GTIN | 729198450298 |
Manufacturer - RF Industries
Max Voltage/Pwr - 500 Vrms
Material (Pin) - Gold
Center Pin Type - Crimp
Strip Jacket to End - .643
RF Connector Body Style - Straight
Install - 60981(1),88701(2)
For Cable - RG-174/U & RG-316/U
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - Delrin
Strip Insulation to End - .323
Frequency Range - 0-7 GHz
RF Connector - TNC Male
Strip Shield to End - .465
Max Voltage/Pwr - 500 Vrms
Material (Pin) - Gold
Center Pin Type - Crimp
Strip Jacket to End - .643
RF Connector Body Style - Straight
Install - 60981(1),88701(2)
For Cable - RG-174/U & RG-316/U
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - Delrin
Strip Insulation to End - .323
Frequency Range - 0-7 GHz
RF Connector - TNC Male
Strip Shield to End - .465
