Description

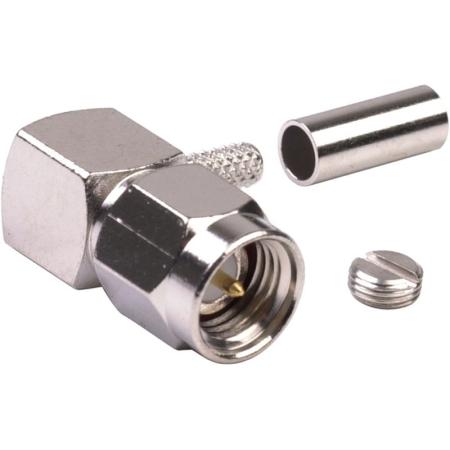

RF INDUSTRIES SMA male right angle for RG174 188 188A and 316 cables. Solder center pin.
MFG Part Number: RSA-3010-B
SMA Male/ Rt Angle/RG174
In Stock - Qty: 115All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 1.00 × 2.00 × 1.00 in |
| Brand | RF Industries |
| Model | RSA-3010-B |
| GTIN | 646444510776 |
Manufacturer - RF Industries
Connection (Note) - Right Angle
Max Voltage/Pwr - 500 Vrms
Material (Pin) - Gold
Center Pin Type - Solder
Strip Jacket to End - 0.625
RF Connector Body Style - Straight
Pieces/UG - 2
For Cable - RG-174, RG-188, RG-188A, RG-316/U, LMR100A, Belden 8216
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - PTFE
Strip Insulation to End - 0.125
Frequency Range - 0-18 GHz
RF Connector - SMA Male
Strip Shield to End - 0.300
RSA-3010-B-Product-Drawing
Connection (Note) - Right Angle
Max Voltage/Pwr - 500 Vrms
Material (Pin) - Gold
Center Pin Type - Solder
Strip Jacket to End - 0.625
RF Connector Body Style - Straight
Pieces/UG - 2
For Cable - RG-174, RG-188, RG-188A, RG-316/U, LMR100A, Belden 8216
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - PTFE
Strip Insulation to End - 0.125
Frequency Range - 0-18 GHz
RF Connector - SMA Male
Strip Shield to End - 0.300
RSA-3010-B-Product-Drawing
