Description

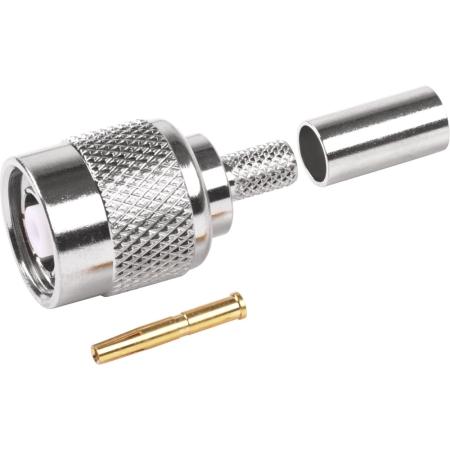

TERRAWAVE Solutions RPTNC Plug (M) Connector for 195 Cable. Includes Female Center Pin.
MFG Part Number: CON-02-195
RPTNC Plug – 195 Cable
In Stock - Qty: 3All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.03 lbs |
|---|---|
| Dimensions | 2.00 × 1.00 × 1.00 in |
| Brand | Ventev / TerraWave |
| Model | CON-02-195 |
| GTIN | 646444639903 |
Manufacturer - Ventev / TerraWave
RF Connector Body Style - Straight
Insulator Material - PTFE
Pieces/UG - 3
Center Pin Type - Solder
Strip Insulation to End - 4.0 mm
RF Connector - RP TNC Male
RF Impedance - 50 Ohms
Install - 392320 (1) 313429 (2)
Strip Jacket to End - 14.2 mm
For Cable - TWS-195
Material (Pin) - Brass Gold
Strip Shield to End - 6.7 mm
Qty/ Uom - 1 Each
RF Connector Body Style - Straight
Insulator Material - PTFE
Pieces/UG - 3
Center Pin Type - Solder
Strip Insulation to End - 4.0 mm
RF Connector - RP TNC Male
RF Impedance - 50 Ohms
Install - 392320 (1) 313429 (2)
Strip Jacket to End - 14.2 mm
For Cable - TWS-195
Material (Pin) - Brass Gold
Strip Shield to End - 6.7 mm
Qty/ Uom - 1 Each
