RPSMA Jack for 240 Cable

In Stock - Qty: 781

$6.16

All orders come with tracking information
and guaranteed shipping.

Description

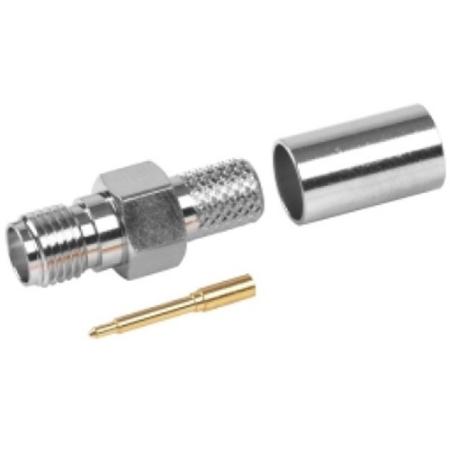

TERRAWAVE Solutions RPSMA Jack (M Center Pin) Connector For 240 Cable. Gold plated

MFG Part Number: CON-19-240-G

Features

Weight 0.01 lbs
Dimensions 3.00 × 3.00 × 1.00 in
Brand Ventev / TerraWave
Model CON-19-240-G
GTIN 888063126062
Manufacturer - Ventev / TerraWave
Max Voltage/Pwr - 500V
Material (Pin) - Brass Gold
Center Pin Type - Solder
Strip Jacket to End - 12.3 mm
RF Connector Body Style - Straight
Pieces/UG - 3
Install - 392320 (1) 313429 (2)
For Cable - TWS-240
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - PTFE
Strip Insulation to End - 2.5 mm
Frequency Range - 0-18 GHz
RF Connector - RP SMA Female
Strip Shield to End - 7.3 mm
