Description

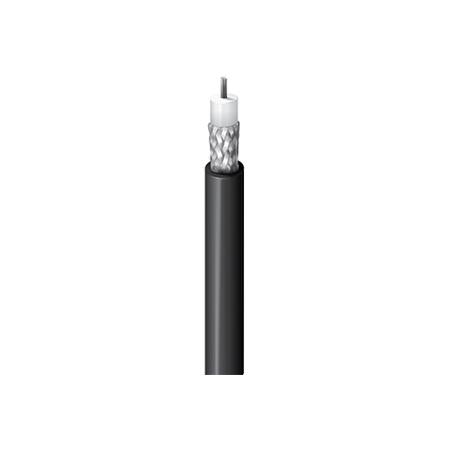

BELDEN RG58A/U black coax. 50 ohm stranded center conductor. Cellular poly dielectric 96% shield coverage 78% vel of prop. MSHA Approved. UL
MFG Part Number: 8219
RG58A/U Coax Cable MSHA
In Stock - Qty: 2All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Belden |
| Model | 8219 |
| GTIN | 729198969318 |
Loss @ 50 Mhz - 3.1 dB/100 ft
Center Conductor Construction - Stranded
Minimum Bend Radius Installation - 1.9 in
Nominal Core O.D. - 0.116 in
Qty/ Uom - 1 Foot
Shield % - 95 %
Center Conductor Diameter - 0.037 in
Loss @ 1000 MHz - 18.1 dB/100 ft
Strip Tool - #63427, 494357 or 460047
Loss @ 100 MHz - 4.5 dB
Dielectric Insulation - PE
Loss @ 900 MHz - 16.6 dB
Manufacturer - Belden
VOP - 76 %
Cable Type - RG-58
Sold By - per foot
Nominal O.D. - 0.193 in
Loss @ 400 MHz - 10.0 dB
Center Conductor Material - Tinned Copper
Nominal Capacitance (pF/ft) - 26.5
96931-Spec-Sheet
Center Conductor Construction - Stranded
Minimum Bend Radius Installation - 1.9 in
Nominal Core O.D. - 0.116 in
Qty/ Uom - 1 Foot
Shield % - 95 %
Center Conductor Diameter - 0.037 in
Loss @ 1000 MHz - 18.1 dB/100 ft
Strip Tool - #63427, 494357 or 460047
Loss @ 100 MHz - 4.5 dB
Dielectric Insulation - PE
Loss @ 900 MHz - 16.6 dB
Manufacturer - Belden
VOP - 76 %
Cable Type - RG-58
Sold By - per foot
Nominal O.D. - 0.193 in
Loss @ 400 MHz - 10.0 dB
Center Conductor Material - Tinned Copper
Nominal Capacitance (pF/ft) - 26.5
96931-Spec-Sheet
