Description

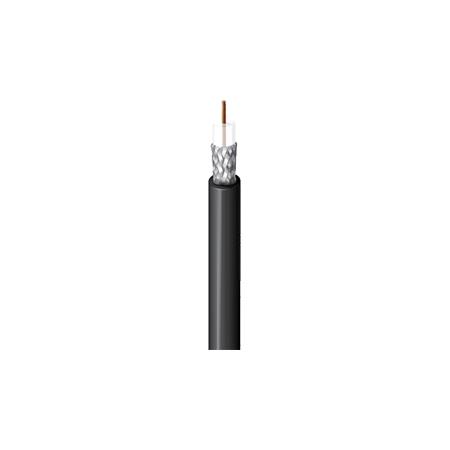

BELDEN RG58/U JAN-C-17A coax cable. 53.5 ohm solid center conductor. Poly dielectric 95% shield coverage 66% vel of prop. 500 ft. spool.
MFG Part Number: 8240-500
RG58/U Mil Spec Cable500′
In Stock - Qty: 15All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 13.84 lbs |
|---|---|
| Dimensions | 12.00 × 12.00 × 9.00 in |
| Brand | Belden |
| Model | 8240-500 |
| GTIN | 729198851354 |
Nominal Core O.D. - 0.116 in
Minimum Bend Radius Installation - 1.9 in
Loss @ 100 MHz - 3.8 dB
Strip Tool - PS59/6/RGB
Center Conductor Construction - Solid
Sold By - 500'
Other Spec - Mil Spec JAN-C-17A
Center Conductor Diameter - 0.033 in
Loss @ 900 MHz - 13.7 dB
Loss @ 400 MHz - 8.4 dB
Manufacturer - Belden
Nominal Capacitance (pF/ft) - 28.5
Cable Type - RG-58
Nominal O.D. - 0.193 in
Dielectric Insulation - PE
Shield % - 95 %
Qty/ Uom - 500 Foot
Loss @ 1000 MHz - 14.5 dB/100 ft
Loss @ 50 Mhz - 2.5 dB/100 ft
VOP - 66 %
Center Conductor Material - Copper
Minimum Bend Radius Installation - 1.9 in
Loss @ 100 MHz - 3.8 dB
Strip Tool - PS59/6/RGB
Center Conductor Construction - Solid
Sold By - 500'
Other Spec - Mil Spec JAN-C-17A
Center Conductor Diameter - 0.033 in
Loss @ 900 MHz - 13.7 dB
Loss @ 400 MHz - 8.4 dB
Manufacturer - Belden
Nominal Capacitance (pF/ft) - 28.5
Cable Type - RG-58
Nominal O.D. - 0.193 in
Dielectric Insulation - PE
Shield % - 95 %
Qty/ Uom - 500 Foot
Loss @ 1000 MHz - 14.5 dB/100 ft
Loss @ 50 Mhz - 2.5 dB/100 ft
VOP - 66 %
Center Conductor Material - Copper
