Description

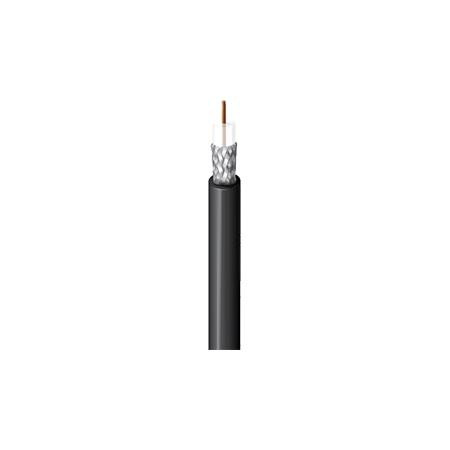

BELDEN RG58/U JAN-C-17A coax cable. 53.5 ohm solid center conductor. Poly dielectric 95% shield coverage 66% vel of prop. 16dB loss/100′ at 900 MHz. UL.
MFG Part Number: 8240
RG58/U Mil Spec Cable
In Stock - Qty: 604All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.03 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Belden |
| Model | 8240 |
| GTIN | 729198705039 |
Loss @ 50 Mhz - 2.5 dB/100 ft
Center Conductor Construction - Solid
Nominal Core O.D. - 0.116 in
Minimum Bend Radius Installation - 1.9 in
Qty/ Uom - 1 Foot
Shield % - 95 %
Center Conductor Diameter - 0.033 in
Loss @ 1000 MHz - 14.5 dB/100 ft
Strip Tool - PS59/6/RGB
Loss @ 100 MHz - 3.8 dB
Dielectric Insulation - PE
Other Spec - Mil Spec JAN-C-17A
Loss @ 900 MHz - 13.7 dB
Manufacturer - Belden
VOP - 66 %
Cable Type - RG-58
Sold By - per foot
Nominal O.D. - 0.193 in
Loss @ 400 MHz - 8.4 dB
Center Conductor Material - Copper
Nominal Capacitance (pF/ft) - 28.5
70503-Spec-Sheet
Center Conductor Construction - Solid
Nominal Core O.D. - 0.116 in
Minimum Bend Radius Installation - 1.9 in
Qty/ Uom - 1 Foot
Shield % - 95 %
Center Conductor Diameter - 0.033 in
Loss @ 1000 MHz - 14.5 dB/100 ft
Strip Tool - PS59/6/RGB
Loss @ 100 MHz - 3.8 dB
Dielectric Insulation - PE
Other Spec - Mil Spec JAN-C-17A
Loss @ 900 MHz - 13.7 dB
Manufacturer - Belden
VOP - 66 %
Cable Type - RG-58
Sold By - per foot
Nominal O.D. - 0.193 in
Loss @ 400 MHz - 8.4 dB
Center Conductor Material - Copper
Nominal Capacitance (pF/ft) - 28.5
70503-Spec-Sheet
