Description
BELDEN RG174A/U MIL-C-17D “Mini RG” coax cable Stranded center cond. Poly dielectric 88% shield coverage 66% vel of prop. 28.2dB loss/100′ 900 MHz. UL.
MFG Part Number: 8216

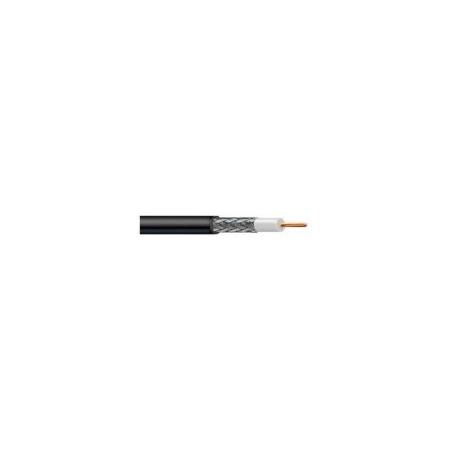

RG174A/U Mini Coax Cable
In Stock - Qty: 430All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.01 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Belden |
| Model | 8216 |
| GTIN | 729198981808 |
Cable Type - RG-174/U
Qty/ Uom - 1 Foot
Center Conductor Diameter - 0.019 in
Loss @ 900 MHz - 28.2 dB
Nominal Capacitance (pF/ft) - 30.8
Loss @ 400 MHz - 17.5 dB
Other Spec - Mil Spec MIL-C-17F
Loss @ 50 MHz - 6.6
Nominal Core O.D. - 0.060
Sold By - per foot
Center Conductor Construction - Stranded
Manufacturer - Belden
Nominal O.D. - 0.101 in
Center Conductor Material - Copper Clad Steel
Loss @ 100 MHz - 8.9 dB
Shield % - 88% braid
Dielectric Insulation - PE
Loss @ 1000 MHz - 30.0
VOP - 66 %
Qty/ Uom - 1 Foot
Center Conductor Diameter - 0.019 in
Loss @ 900 MHz - 28.2 dB
Nominal Capacitance (pF/ft) - 30.8
Loss @ 400 MHz - 17.5 dB
Other Spec - Mil Spec MIL-C-17F
Loss @ 50 MHz - 6.6
Nominal Core O.D. - 0.060
Sold By - per foot
Center Conductor Construction - Stranded
Manufacturer - Belden
Nominal O.D. - 0.101 in
Center Conductor Material - Copper Clad Steel
Loss @ 100 MHz - 8.9 dB
Shield % - 88% braid
Dielectric Insulation - PE
Loss @ 1000 MHz - 30.0
VOP - 66 %
