Description

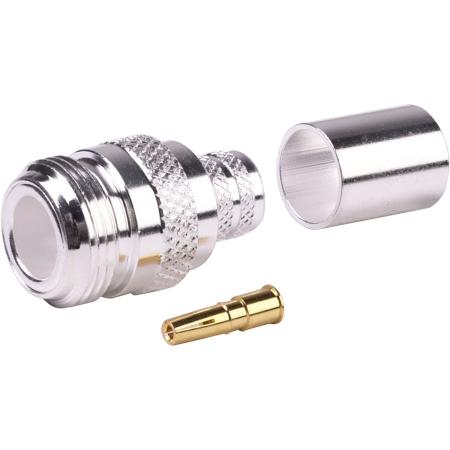

RF INDUSTRIES N female connector for 99139914LMR-400Andrew 241543TL93605 Silver plated body and gold center pin. Solder center pin and braid.
MFG Part Number: RFN-1028-SI
NFem. Solder-9913,LMR400
In Stock - Qty: 178All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 2.00 × 1.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFN-1028-SI |
| GTIN | 729198447281 |
RF Impedance - 50 Ohms
Qty/ Uom - 1 Each
Strip Shield to End - N/A
RF Connector Body Style - Straight
For Cable - Belden 9913, 8214 & LMR400
Max Voltage/Pwr - 1000V peak
Frequency Range - 0-3 GHz
Center Pin Type - Solder
Material (Pin) - Gold
Manufacturer - RF Industries
Strip Insulation to End - 0.250
Insulator Material - PTFE
Strip Jacket to End - 0.500
Crimp Tool - #479428, 58038,
RF Connector - N Female
Install - 60981(1),88701(2)
RFN-1028-SI-Product-Drawing
Qty/ Uom - 1 Each
Strip Shield to End - N/A
RF Connector Body Style - Straight
For Cable - Belden 9913, 8214 & LMR400
Max Voltage/Pwr - 1000V peak
Frequency Range - 0-3 GHz
Center Pin Type - Solder
Material (Pin) - Gold
Manufacturer - RF Industries
Strip Insulation to End - 0.250
Insulator Material - PTFE
Strip Jacket to End - 0.500
Crimp Tool - #479428, 58038,
RF Connector - N Female
Install - 60981(1),88701(2)
RFN-1028-SI-Product-Drawing
