Description

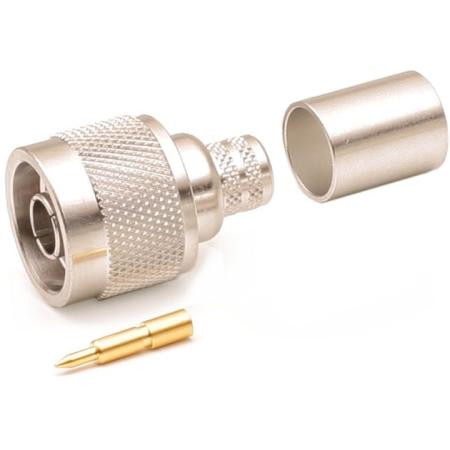

TERRAWAVE N Plug (M Center Pin) Connector for 400 Cable.
MFG Part Number: CON-07-400
N Plug for 400 Cable
In Stock - Qty: 4All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.07 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | Ventev / TerraWave |
| Model | CON-07-400 |
| GTIN | 646444629584 |
Manufacturer - Ventev / TerraWave
Install - 392320 (1) 313429 (2)
For Cable - TWS-400
Qty/ Uom - 1 Each
Frequency Range - 0-11 GHz
Strip Insulation to End - 3.5 mm
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Jacket to End - 15.5 mm
Pieces/UG - 3
Material (Pin) - Brass Gold
RF Impedance - 50 Ohms
Max Voltage/Pwr - 1500V
Strip Shield to End - 8.5 mm
Insulator Material - PTFE
RF Connector - N Male
Install - 392320 (1) 313429 (2)
For Cable - TWS-400
Qty/ Uom - 1 Each
Frequency Range - 0-11 GHz
Strip Insulation to End - 3.5 mm
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Jacket to End - 15.5 mm
Pieces/UG - 3
Material (Pin) - Brass Gold
RF Impedance - 50 Ohms
Max Voltage/Pwr - 1500V
Strip Shield to End - 8.5 mm
Insulator Material - PTFE
RF Connector - N Male
