RF Industries, Ltd.

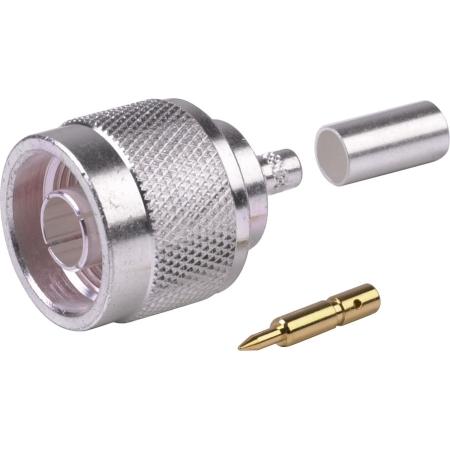

50 Ohm N Male Crimp Connector for RG-142/U and RG-55/U

NCNR
Model: RFN-1005-3C1
$6.68

RF INDUSTRIES N male connector for RG55, RG223, RG142, Belden 8219 & 9907 cable. Silver plated body, gold pin. Crimp center pin, crimp on braid.

Quantity:

In stock

The estimated shipping date updated to

Cancel

All orders come with tracking information and guaranteed shipping.

Some items qualify for Free Shipping within the USA. Add to Cart to find out

Description

RF INDUSTRIES N male connector for RG55, RG223, RG142, Belden 8219 & 9907 cable. Silver plated body, gold pin. Crimp center pin, crimp on braid.

Technical Specs

  • RF Connector N Male
  • RF Impedance 50 Ohms
  • RF Connector Body Style Straight
  • Low PIM No
  • Body Material Silver Plated Brass
  • Center Pin Type Crimp
  • For Cable RGs-55, ,142/U, ,223/U, ,8219, ,83242, ,9907 84142, ,ALPHA 9055
  • Frequency Range 0-11 GHz
  • Insulator Material PTFE
  • Crimp Tool # 92609, 54250 or 85913
  • Material (Pin) Gold
  • Max Voltage/Pwr 1000 Vpeak
  • Strip Insulation to End 0.325
  • Strip Jacket to End 0.560
  • Strip Shield to End 0.410

Features

  • Weight 0.1 lbs
  • Dimensions 1.25 * 0.75 * 0.75 in
  • Brand RF Industries, Ltd.
  • Model RFN-1005-3C1
