Description

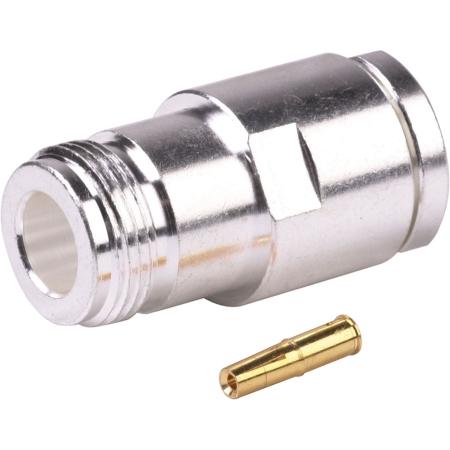

RF INDUSTRIES N female connector for RG8/U RG8A/U and RG213 cables. Silver plated body and gold center pin. Solder center pin clamp on braid.
MFG Part Number: RFN-1024-1
N Female-RG8/RG213
Out of StockOut of stock
All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.10 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFN-1024-1 |
| GTIN | 729198962463 |
Install - 60981(1),88701(2)
Strip Jacket to End - 0.500
Crimp Tool - #69999, 44820, 92609
Max Voltage/Pwr - 1000 Vpeak
Insulator Material - PTFE
Pieces/UG - 23D/U
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG8/U, RG8A/U, RG213
Qty/ Uom - 1 Each
Connection (Note) - Can crimp pin (.1)
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
RFN-1024-1-Product-Drawing
Strip Jacket to End - 0.500
Crimp Tool - #69999, 44820, 92609
Max Voltage/Pwr - 1000 Vpeak
Insulator Material - PTFE
Pieces/UG - 23D/U
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG8/U, RG8A/U, RG213
Qty/ Uom - 1 Each
Connection (Note) - Can crimp pin (.1)
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
RFN-1024-1-Product-Drawing
