Description

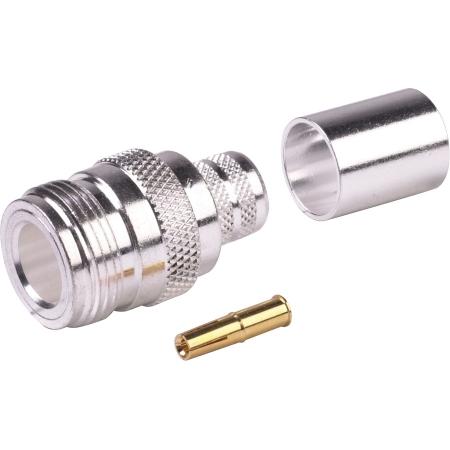

RF INDUSTRIES N female connector for RG8/U RG8A/U and RG213 cables. Silver plated body and gold center pin. Crimp center pin crimp on braid.
MFG Part Number: RFN-1028
N Female Crimp-RG8/RG213
In Stock - Qty: 156All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.06 lbs |
|---|---|
| Dimensions | 2.00 × 1.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFN-1028 |
| GTIN | 729198748142 |
Install - 60981(1),88701(2)
Crimp Tool - #69999, 58038, 481586
Strip Jacket to End - 0.500
Max Voltage/Pwr - 1000V peak
Insulator Material - PTFE
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG8/U, RG8A/U, RG213
Qty/ Uom - 1 Each
Strip Shield to End - N/A
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Crimp
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
Crimp Tool - #69999, 58038, 481586
Strip Jacket to End - 0.500
Max Voltage/Pwr - 1000V peak
Insulator Material - PTFE
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG8/U, RG8A/U, RG213
Qty/ Uom - 1 Each
Strip Shield to End - N/A
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Crimp
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
