Description

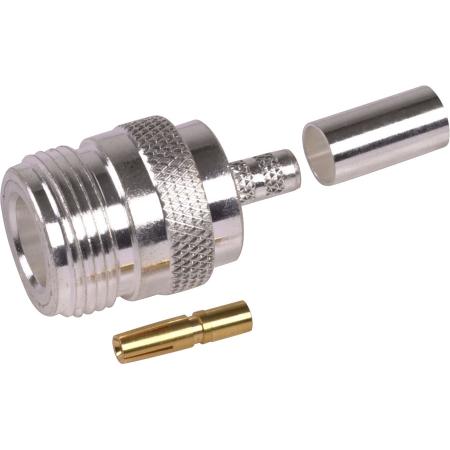

RF INDUSTRIES N female connector for RG223Rg55/ARG142RG400 cables. Silver plated body gold pin. .100 center pin can be crimped or solder
MFG Part Number: RFN-1027-C1
N Female Crimp-RG223/400
In Stock - Qty: 36All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.05 lbs |
|---|---|
| Dimensions | 2.00 × 1.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFN-1027-C1 |
| GTIN | 729198686772 |
Install - 60981(1),88701(2)
Strip Jacket to End - 0.625
Crimp Tool - #44820, 85913, 92609
Max Voltage/Pwr - 1000V peak
Insulator Material - PTFE
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG223,RG400,RG55,RG142
Qty/ Uom - 1 Each
Strip Shield to End - 0.300
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Crimp
RF Connector Body Style - Straight
Strip Insulation to End - 0.125
RF Connector - N Female
RFN-1027-C1-Product-Drawing
Strip Jacket to End - 0.625
Crimp Tool - #44820, 85913, 92609
Max Voltage/Pwr - 1000V peak
Insulator Material - PTFE
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - RG223,RG400,RG55,RG142
Qty/ Uom - 1 Each
Strip Shield to End - 0.300
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Crimp
RF Connector Body Style - Straight
Strip Insulation to End - 0.125
RF Connector - N Female
RFN-1027-C1-Product-Drawing
