Description

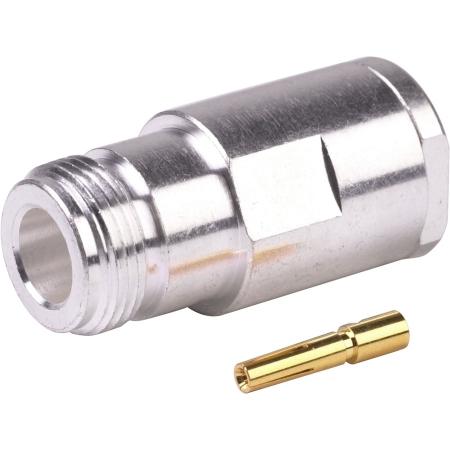

RF INDUSTRIES N female connector for Belden 991399148214 & LMR400 cables. Silver plated body with gold center pin. Solder center pin clamp on braid.
MFG Part Number: RFN-1024-1SI
N Female-8214/9913/LMR400
In Stock - Qty: 39All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.12 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFN-1024-1SI |
| GTIN | 729198458881 |
Install - 60981(1),88701(2)
Strip Jacket to End - 0.500
Crimp Tool - #58038, 434496
Max Voltage/Pwr - 1000 Vpeak
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - Belden 9913,9914 8214 & LMR400.
Qty/ Uom - 1 Each
Connection (Note) - Can crimp pin .128
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
RFN-1024-1SI-Product-Drawing
Strip Jacket to End - 0.500
Crimp Tool - #58038, 434496
Max Voltage/Pwr - 1000 Vpeak
RF Impedance - 50 Ohms
Frequency Range - 0-3 GHz
For Cable - Belden 9913,9914 8214 & LMR400.
Qty/ Uom - 1 Each
Connection (Note) - Can crimp pin .128
Manufacturer - RF Industries
Material (Pin) - Gold
Center Pin Type - Solder
RF Connector Body Style - Straight
Strip Insulation to End - 0.250
RF Connector - N Female
RFN-1024-1SI-Product-Drawing
