Description

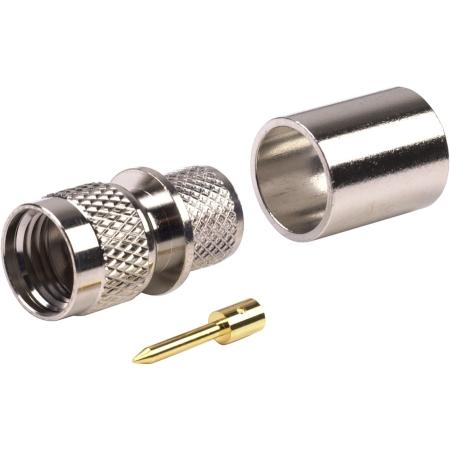

TIMES Mini-UHF male connector for 3/8″ LMR400 coaxial cable. Solder center pin crimp on ferrule. Nickle plated body gold plated pin.
MFG Part Number: TC-400-MUHF
Mini-UHF Male – LMR-400
In Stock - Qty: 134All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.02 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | Times Microwave Systems |
| Model | TC-400-MUHF |
| GTIN | 729198867607 |
Manufacturer - Times Microwave Systems
Insulator Material - Delrin
Strip Jacket to End - 0.850
Strip Insulation to End - 0.125
RF Connector - Mini UHF Male
Strip Shield to End - 0.125
RF Connector Body Style - Straight
Qty/ Uom - 1 Each
For Cable - LMR400, LMR400UF, LMR400DB, LMR400FR
RF Impedance - 50 Ohms
Frequency Range - 0-2 GHz
Material (Pin) - Gold
Center Pin Type - Solder
Max Voltage/Pwr - 300 Volts
Install - 60981(1),88701(2)
Insulator Material - Delrin
Strip Jacket to End - 0.850
Strip Insulation to End - 0.125
RF Connector - Mini UHF Male
Strip Shield to End - 0.125
RF Connector Body Style - Straight
Qty/ Uom - 1 Each
For Cable - LMR400, LMR400UF, LMR400DB, LMR400FR
RF Impedance - 50 Ohms
Frequency Range - 0-2 GHz
Material (Pin) - Gold
Center Pin Type - Solder
Max Voltage/Pwr - 300 Volts
Install - 60981(1),88701(2)
