Description

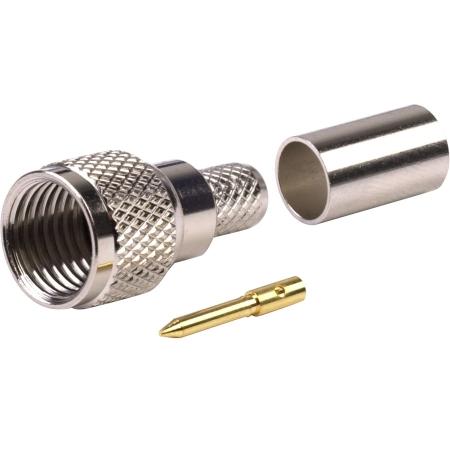

TIMES Mini-UHF male connector for 1/4″ superflexible LMR-240 foam dielectric cable. Solder center conductor crimp on braid.
MFG Part Number: TC-240-MUHF
Mini-UHF Male – LMR-240
In Stock - Qty: 439All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.03 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | Times Microwave Systems |
| Model | TC-240-MUHF |
| GTIN | 729198958206 |
Strip Insulation to End - 0.125
Insulator Material - Delrin
Strip Shield to End - 0.125
RF Connector - Mini UHF Male
Material (Pin) - Silver
Frequency Range - 0-2 GHz
Center Pin Type - Solder
Max Voltage/Pwr - 300 Volts
Install - 60981(1),88701(2)
Manufacturer - Times Microwave Systems
Strip Jacket to End - 0.850
For Cable - LMR240, LMR240FR, LMR240MA
RF Connector Body Style - Straight
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
Insulator Material - Delrin
Strip Shield to End - 0.125
RF Connector - Mini UHF Male
Material (Pin) - Silver
Frequency Range - 0-2 GHz
Center Pin Type - Solder
Max Voltage/Pwr - 300 Volts
Install - 60981(1),88701(2)
Manufacturer - Times Microwave Systems
Strip Jacket to End - 0.850
For Cable - LMR240, LMR240FR, LMR240MA
RF Connector Body Style - Straight
Qty/ Uom - 1 Each
RF Impedance - 50 Ohms
