Description

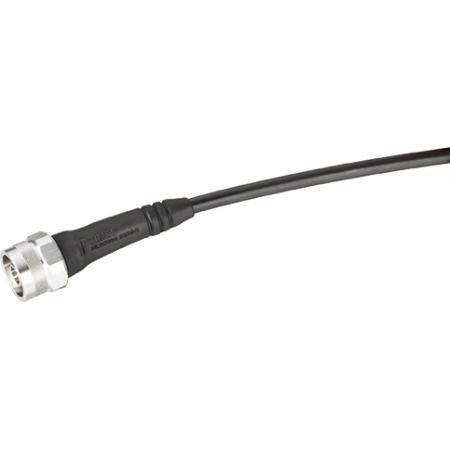

TIMES MICROWAVE LMR240DB cable. 1/4″ O.D. 50 ohms. Stranded outer conductor water blocking within the braid 0.75″ bending radius. $ per foot.
MFG Part Number: LMR-240-DB
LMR-240-DB
In Stock - Qty: 25761All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Times Microwave Systems |
| Model | LMR-240-DB |
| GTIN | 729198737191 |
Loss @ 100 MHz - 2.453 dB
Manufacturer - Times Microwave Systems
Nominal O.D. - 0.178 in
Shield % - 90%
Nominal Core O.D. - 0.155 in
Minimum Bend Radius Operation - 2.5 in
Center Conductor Diameter - 0.056 in
Sold By - per ft
Loss @ 50 Mhz - 1.7 dB/100 ft
Qty/ Uom - 1 Foot
Other Spec - Direct Burial
Loss @ 900 MHz - 7.6 dB
Center Conductor Material - Copper
Minimum Bend Radius Installation - 0.75 in
Strip Tool - CST-240A
Cable Type - LMR-240DB
Nominal Capacitance (pF/ft) - 24.2
Dielectric Insulation - PE
VOP - 83 %
Center Conductor Construction - Solid
Loss @ 400 MHz - 4.973 dB
Loss @ 1000 MHz - 7.985 dB/100 ft
Manufacturer - Times Microwave Systems
Nominal O.D. - 0.178 in
Shield % - 90%
Nominal Core O.D. - 0.155 in
Minimum Bend Radius Operation - 2.5 in
Center Conductor Diameter - 0.056 in
Sold By - per ft
Loss @ 50 Mhz - 1.7 dB/100 ft
Qty/ Uom - 1 Foot
Other Spec - Direct Burial
Loss @ 900 MHz - 7.6 dB
Center Conductor Material - Copper
Minimum Bend Radius Installation - 0.75 in
Strip Tool - CST-240A
Cable Type - LMR-240DB
Nominal Capacitance (pF/ft) - 24.2
Dielectric Insulation - PE
VOP - 83 %
Center Conductor Construction - Solid
Loss @ 400 MHz - 4.973 dB
Loss @ 1000 MHz - 7.985 dB/100 ft
