GPS Networking, Inc.

GPS Active Antenna Splitter 1x8

Model: ALDCBS1X8-BNC
$1,053.96

GPS NETWORKING's ALDCBS1X8 GPS amplified splitter is a one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire...

Out Of Stock

All orders come with tracking information and guaranteed shipping.

Some items qualify for Free Shipping within the USA. Add to Cart to find out

Description

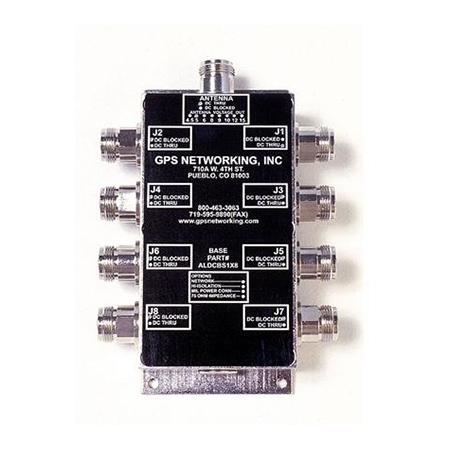

GPS NETWORKING's ALDCBS1X8 GPS amplified splitter is a one input, eight output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS frequencies) with excellent gain flatness. In the standard configuration without external power, output 1 (J1) passes DC from the connected GPS device through the splitter to the input (antenna port), allowing the GPS receiver to power both an active antenna and the splitter’s internal amplifier. The other RF outputs (J2-J8) are DC blocked and loaded with 200 Ohm resistors to simulate the antenna current draw to prevent false antenna alarm faults.

Technical Specs

Features

  • Weight 1.24 lbs
  • Dimensions 6 * 5 * 2 in
  • Brand GPS Networking, Inc.
  • Model ALDCBS1X8-BNC
