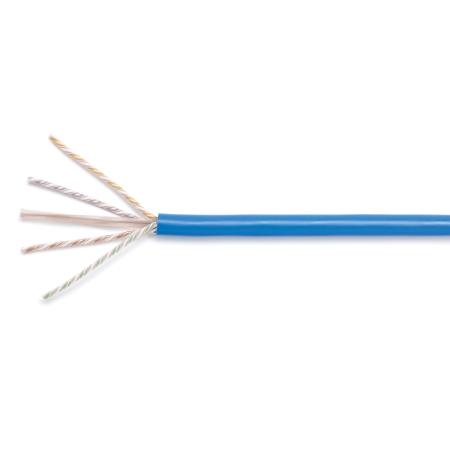

SYSTIMAX 360 GigaSPEED X10D 91B Series U/UTP Cable

Description

The CommScope 760105338 SYSTIMAX 360 GigaSPEED X10D 91B series U/UTP cable has been redesigned with a smaller diameter, making it the smallest CAT 6A cable on the market today. Using SYSTIMAX’s innovative Optimized Material Technology (OMT) platform, not only reduces the cable's core but optimizes transmission performance, giving network managers increased rack space and airflow without succumbing to alien crosstalk.The GigaSPEED X10D U/UTP 91B series cables have been optimized with the GigaSPEED X10D connectors and cords to minimize internal channel crosstalk, and also crosstalk between channels in close proximity. The 91B series cables incorporate a round smooth shape that speeds the handling and termination process. The cables have been designed to withstand an aggressive 6-around-1 channel test that CommScope's Labs believes to be the most challenging test configuration. This is a PowerSUM computation of the alien crosstalk noise from 24 pairs of six channels surrounding a single four-pair channel. The 91B series cables have been specified out to 550 MHz to support high bandwidth applications operating at 10 Gb.
