Description

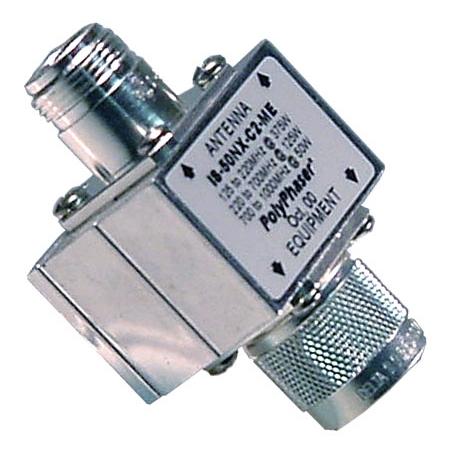

POLYPHASER 125-1000 MHz general coverage flange mnt. protector. 50000 amps surge 220uJ throughput energy. Power rating based on freq. N male on equip. port.
MFG Part Number: IS-50NX-C2-ME
Flange Arrestor, N/F-N/M
In Stock - Qty: 63All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.37 lbs |
|---|---|
| Dimensions | 4.00 × 2.00 × 1.00 in |
| Brand | PolyPhaser |
| Model | IS-50NX-C2-ME |
| GTIN | 729198973599 |
Compliance Standards - CE
Turn On Voltage - 600 VDC
Qty/ Uom - 1 Each
Motorola Part - DSIS50NXC2ME
Mount Type - Flange
Frequency Range - 125-1000 MHz
Protected Side Connector - N Male
RF Power - 375 W to 50 W
Nominal Insertion Loss - 0.1 dB
Maximum Throughput Energy - 10 mJ
Surge Side Connector - N Female
Manufacturer - PolyPhaser
Data-sheet
IS-50-Series
Turn On Voltage - 600 VDC
Qty/ Uom - 1 Each
Motorola Part - DSIS50NXC2ME
Mount Type - Flange
Frequency Range - 125-1000 MHz
Protected Side Connector - N Male
RF Power - 375 W to 50 W
Nominal Insertion Loss - 0.1 dB
Maximum Throughput Energy - 10 mJ
Surge Side Connector - N Female
Manufacturer - PolyPhaser
Data-sheet
IS-50-Series
