Description

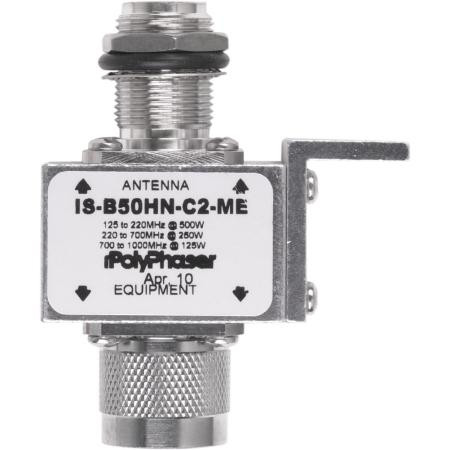

POLYPHASER 125-1000 MHz general coverage bulkhead mnt protector. 50000amps surge <800uJ throughput energy. Power based on freq. N male on equipment port.
MFG Part Number: IS-B50HN-C2-ME
Bulkhead ArrestorN/F-N/M
Out of StockOut of stock
All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.38 lbs |
|---|---|
| Dimensions | 4.00 × 3.00 × 2.00 in |
| Brand | PolyPhaser |
| Model | IS-B50HN-C2-ME |
| GTIN | 729198168261 |
Compliance Standards - CE
Protected Side Connector - N Male
Motorola Part - DSISB50HNC2ME
Maximum Throughput Energy - 800 µJ
Nominal Insertion Loss - 0.1 dB
Manufacturer - PolyPhaser
Surge Side Connector - N Female
Mount Type - Bulkhead and Flange
Turn On Voltage - 1200 VDC
Qty/ Uom - 1 Each
RF Power - 500 W to 125 W
Frequency Range - 125-1000 MHz
Data-sheet
IS-B50-Series-Data-Sheet
Protected Side Connector - N Male
Motorola Part - DSISB50HNC2ME
Maximum Throughput Energy - 800 µJ
Nominal Insertion Loss - 0.1 dB
Manufacturer - PolyPhaser
Surge Side Connector - N Female
Mount Type - Bulkhead and Flange
Turn On Voltage - 1200 VDC
Qty/ Uom - 1 Each
RF Power - 500 W to 125 W
Frequency Range - 125-1000 MHz
Data-sheet
IS-B50-Series-Data-Sheet
