Description

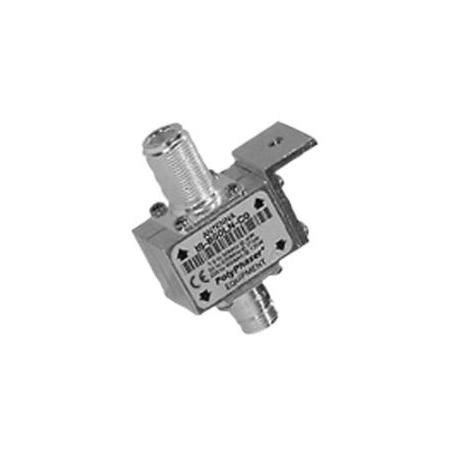

POLYPHASER 10MHz TO 1GHz DC Blocked Protector. Bulkhead mount with N female surge side and N female protected side connectors.
MFG Part Number: IS-B50LN-C0
Bulkhead Arrestor, N/F
In Stock - Qty: 46All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.37 lbs |
|---|---|
| Dimensions | 4.00 × 2.00 × 2.00 in |
| Brand | PolyPhaser |
| Model | IS-B50LN-C0 |
| GTIN | 729198155773 |
Surge Side Connector - N Female
Manufacturer - PolyPhaser
Compliance Standards - CE
Turn On Voltage - 600 VDC
Qty/ Uom - 1 Each
Motorola Part - DQISB50LNC0
Mount Type - Bulkhead and Flange
Frequency Range - 10-1000 MHz
Description - 10MHz TO 1GHz DC Blocked Protector.Bulkhead mount, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors
Protected Side Connector - N Female
RF Power - 2000 W to 125 W
Nominal Insertion Loss - 0.1 dB
Maximum Throughput Energy - 10 mJ
Data-sheet
Manufacturer - PolyPhaser
Compliance Standards - CE
Turn On Voltage - 600 VDC
Qty/ Uom - 1 Each
Motorola Part - DQISB50LNC0
Mount Type - Bulkhead and Flange
Frequency Range - 10-1000 MHz
Description - 10MHz TO 1GHz DC Blocked Protector.Bulkhead mount, single transmitter coaxial lightning protection for 10 MHz to 1 GHz with N female surge side and N female protected side connectors
Protected Side Connector - N Female
RF Power - 2000 W to 125 W
Nominal Insertion Loss - 0.1 dB
Maximum Throughput Energy - 10 mJ
Data-sheet
