Description

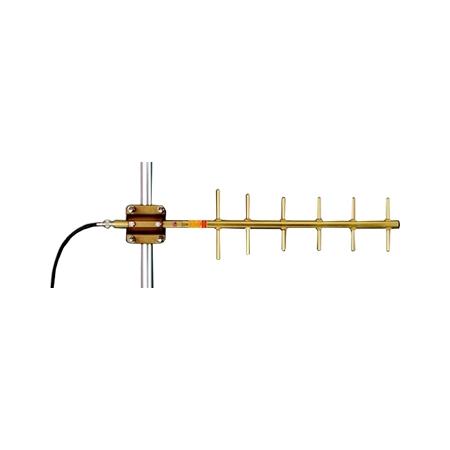

LAIRD 896-970 MHz 9dB Gold anodized finish yagi. 6 element. 300 watt. 50 ohms. Direct N female termination. Stainless steel mounting hardware includ
MFG Part Number: Y8966
896-970 9dB Aluminm Yagi
In Stock - Qty: 56All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 3.88 lbs |
|---|---|
| Dimensions | 30.00 × 9.00 × 3.00 in |
| Brand | Laird Connectivity, Inc. |
| Model | Y8966 |
| GTIN | 729198946746 |
Maximum Rated Wind Velocity - 125 mile/h
Maximum Power - 300 W
Gain dBi - 11.15 dBi
Tuned Frequency (MHz) - N/A
Jumper Included - No
Polarization - Linear
RF Connectors - N Female
Item Length - 27.6875 in
Maximum VSWR - 1.5:1
Horizontal Beamwidth - 42 deg
Type of Hardware Included - U-Bolts
Vertical Beamwidth - 40 deg
Specific Frequency - 896-970 MHz
Item Weight - 3 lb
Connector Placement - Center
Manufacturer - Laird External Antennas TE
Gain dBd - 9 dBd
Qty/ Uom - 1 Each
Lightning Protection - DC Ground
Y8966-Data-Sheet
Maximum Power - 300 W
Gain dBi - 11.15 dBi
Tuned Frequency (MHz) - N/A
Jumper Included - No
Polarization - Linear
RF Connectors - N Female
Item Length - 27.6875 in
Maximum VSWR - 1.5:1
Horizontal Beamwidth - 42 deg
Type of Hardware Included - U-Bolts
Vertical Beamwidth - 40 deg
Specific Frequency - 896-970 MHz
Item Weight - 3 lb
Connector Placement - Center
Manufacturer - Laird External Antennas TE
Gain dBd - 9 dBd
Qty/ Uom - 1 Each
Lightning Protection - DC Ground
Y8966-Data-Sheet
