896-940 MHz 8.5dB Yagi/NF

In Stock - Qty: 436

$66.87

All orders come with tracking information
and guaranteed shipping.

Description

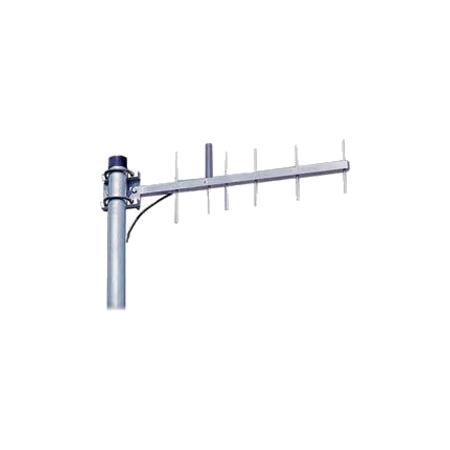

LAIRD 896-940 MHz 6 element yagi. 8.5 dB gain 200 watts. All welded con- struction. Includes jumper with N female termination & hardware (single U-bolt).

MFG Part Number: PC906N

Features

Weight 1.88 lbs
Dimensions 29.00 × 9.00 × 3.00 in
Brand Laird Connectivity, Inc.
Model PC906N
GTIN 729198673789
Lightning Protection - DC Ground
Gain dBi - 10.65 dBi
Type of Hardware Included - U-Bolts
Tuned Frequency (MHz) - N/A
Maximum Power - 200 W
Qty/ Uom - 1 Each
Item Length - 24.75 in
Gain dBd - 8.5 dBd
Manufacturer - Laird External Antennas TE
RF Connectors - N Female
Item Weight - 1.68 lb
Maximum Rated Wind Velocity - 125 mile/h
Type of Jumper Included - 8" Pigtail w/ N Female
Vertical Beamwidth - 55 deg
Maximum VSWR - 1.5:1
Polarization - Linear
Jumper Included - Yes
Horizontal Beamwidth - 65 deg
Connector Placement - Pigtail
Specific Frequency - 896-940 MHz

PC906N-Data-Sheet
