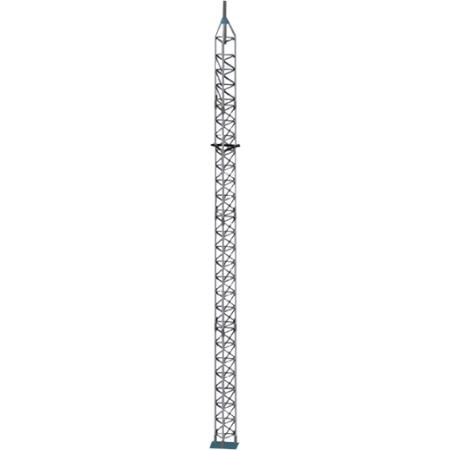

45G 70-ft Guyed Tower Kit

Description

ROHN’s complete guyed tower kits make it easier than ever for you to get everything you need for your next tower installation. The Rohn R-45G90R070 70 ft guyed tower kit contains all hardware necessary to construct a complete 70 ft guyed tower suitable for use in areas with 90 mph Rev G/70 mph Rev F wind speeds. See recommended maximum loadings below. The tower kit includes: BRBR Six (6) standard 10 ft 45G tower sectionsBR One (1) tapered top section with 18 in mounting pipeBR One (1) concrete base plateBR Two (2) guy bracketsBR (500 ft) 3/16 in EHS guy strandBR Twelve (12) 3/16 in big gripsBR Twelve (12) 5/16 in thimblesBR Six (6) 1/2 in eye and jaw turnbucklesBR Three (3) guy anchorsBR One (1) anchor grounding kitBR Three (3) tower base grounding kitsBR Three (3) guy wire ground clampsBR One (1) pier pinBR Three (3) turnbuckle safety kitsBRBRNormal soil foundation designs are found below in the Attachments section. Geotechnical surveys are always recommended prior to any tower installation. TESSCO recommends that you please fill out and submit a A HREF="https://www.tessco.com/customer-service/forms/tower-design-request-form" target="_blank"TESSCO Tower Design Questionnaire/A so that we can be sure to recommed the best tower for your particular application.
