Description

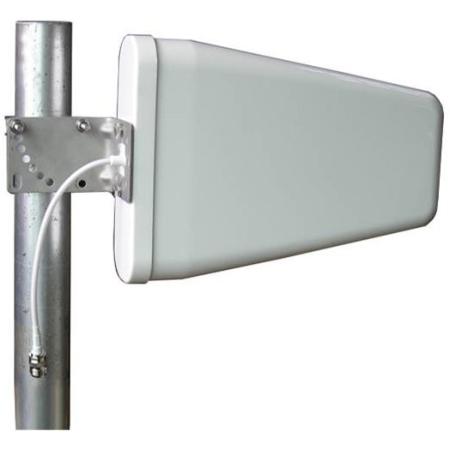

TERRAWAVE Solutions 698-800/800-960/ 1700-2700 MHz 7.5/8.5/10 dBi Yagi with N-Style Jack (F) Connector. Includes articulating mast mount.
MFG Part Number: M3075100Y11206-B
698-960/1700-2700 MHzYagi
In Stock - Qty: 496All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 2.10 lbs |
|---|---|
| Dimensions | 17.00 × 9.00 × 3.00 in |
| Brand | Ventev / TerraWave |
| Model | M3075100Y11206-B |
| GTIN | 888063095849 |
Item Weight - 2 lb
Qty/ Uom - 1 Each
Tuned Frequency (MHz) - N/A
Item Width - 8.3 in
Type of Jumper Included - 12" Pigtail
RF Connectors - N Female
Specific Frequency - 698-800 MHz, 800-960 MHz, 1700-2700 MHz
Gain dBi - 7.5 dBi, 8.5 dBi, 10 dBi
Polarization - Vertical
Connector Placement - Pigtail
Jumper Included - Yes
Maximum Power - 100 W
Gain dBd - 5.36 dBd, 6.36 dBd, 7.86 dBd
Horizontal Beamwidth - 85 deg, 85 deg, 60 deg
Vertical Beamwidth - 60 deg, 60 deg, 50 deg
Item Height - 2.6 in
Manufacturer - Ventev / TerraWave
Type of Hardware Included - Articualting Mast Mount
Maximum VSWR - 1.5:1, 1.8:1, 1.5:1
Item Length - 11.5 in
309584_698-800_800-960_1700-2700-MHz-7.5_8.5_10-dbi-Yagi-Antenna_M3075100Y11206-B-rev
Qty/ Uom - 1 Each
Tuned Frequency (MHz) - N/A
Item Width - 8.3 in
Type of Jumper Included - 12" Pigtail
RF Connectors - N Female
Specific Frequency - 698-800 MHz, 800-960 MHz, 1700-2700 MHz
Gain dBi - 7.5 dBi, 8.5 dBi, 10 dBi
Polarization - Vertical
Connector Placement - Pigtail
Jumper Included - Yes
Maximum Power - 100 W
Gain dBd - 5.36 dBd, 6.36 dBd, 7.86 dBd
Horizontal Beamwidth - 85 deg, 85 deg, 60 deg
Vertical Beamwidth - 60 deg, 60 deg, 50 deg
Item Height - 2.6 in
Manufacturer - Ventev / TerraWave
Type of Hardware Included - Articualting Mast Mount
Maximum VSWR - 1.5:1, 1.8:1, 1.5:1
Item Length - 11.5 in
309584_698-800_800-960_1700-2700-MHz-7.5_8.5_10-dbi-Yagi-Antenna_M3075100Y11206-B-rev
