Microlab/FXR

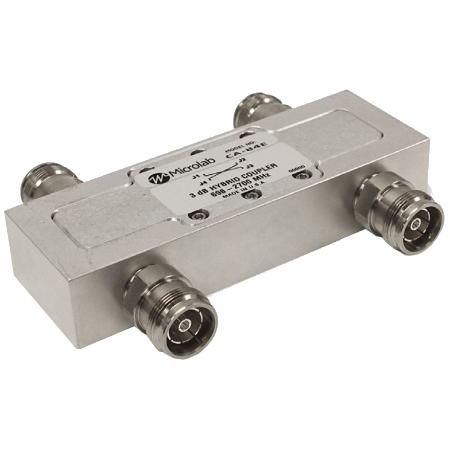

Hybrid Coupler 2x2 694-2700MHz 80W 7-16 -161dBc

NCNR
Model: CA-84D
$386.26

These Hybrid Couplers have industry leading 30dB port to port isolation. They are most commonly used to combine two wireless carriers in the band to...

Quantity:

This product is available for backorder.

Order now to reserve your backorder.

Estimated Shipping Date: July 4, 2024

The estimated shipping date updated to

Cancel

All orders come with tracking information and guaranteed shipping.

Some items qualify for Free Shipping within the USA. Add to Cart to find out

Description

These Hybrid Couplers have industry leading 30dB port to port isolation. They are most commonly used to combine two wireless carriers in the band to a single antenna feed or distribution cable. This requires the low PIM termination on one output port and results in a 3 dB loss in each signal. In situations where two similar feeds are required, as required for an in-building application, both outputs may be used eliminating the need for a termination and the 3 dB loss. For 200W power see Microlab CA-86 series. This coupler is a 90° Quadrature Hybrid. Connector spacing allows controlled wrench tightening. For outdoor environments add suffix ‘P’ to Model No. (e.g. CA-84EP).

Technical Specs

Features

  • Weight 1.85 lbs
  • Dimensions 7.75 * 4.25 * 3.25 in
  • Brand Microlab/FXR
  • Model CA-84D
