Microlab/FXR

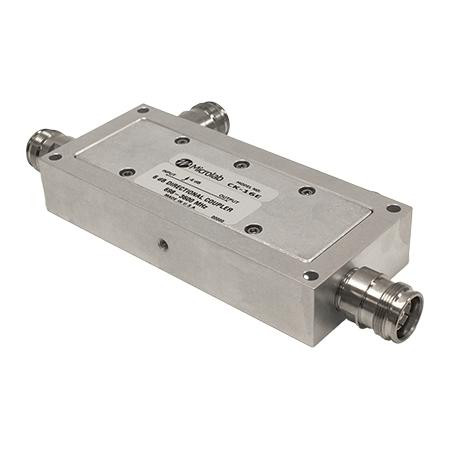

6dB Low PIM Coupler 617-3800MHz 200W 4.30 -10

Model: CK-16E
$350.21

The CK-10 series of Directional Couplers is a tapered stripline design covering from 617 to 3,800 MHz. Units couple off a defined fraction of signal with minimal reflections or loss. Each model is available as a 4 port coupler.pbr/p The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced. Mounting brackets are included.pbr/p Four port directional couplers are available with LC, LD, LE or LN suffix, (e.g. CK-16LN). For outdoor environments add suffix ‘P’ to Model No. (e.g. CK-16NP).

Quantity:

Back In Stock Date: Sun, Oct 8, 2023

*****This product will be placed on backorder!!

All orders come with tracking information and guaranteed shipping.

Some items qualify for Free Shipping within the USA. Add to Cart to find out

Description

The CK-10 series of Directional Couplers is a tapered stripline design covering from 617 to 3,800 MHz. Units couple off a defined fraction of signal with minimal reflections or loss. Each model is available as a 4 port coupler.pbr/p The extremely wide frequency range allows use with multiband antennas, leaky cable systems and wireless base stations. With minimal solder joints and a low loss dielectric, the dissipative loss has been minimized and reliability enhanced. Mounting brackets are included.pbr/p Four port directional couplers are available with LC, LD, LE or LN suffix, (e.g. CK-16LN). For outdoor environments add suffix ‘P’ to Model No. (e.g. CK-16NP).

Technical Specs

Features

  • Weight 1.92 lbs
  • Dimensions 9.75 * 5.25 * 2.5 in
  • Brand Microlab/FXR
  • Model CK-16E
