Description

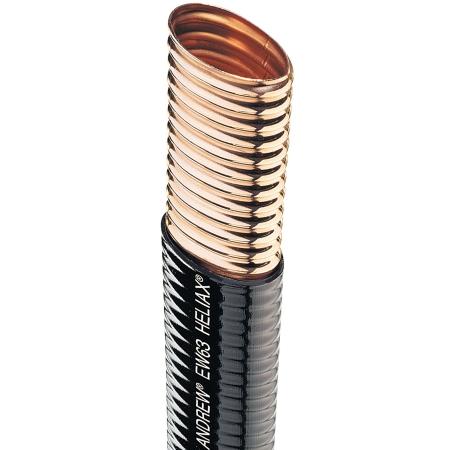

ANDREW 5.925-7.125 GHz (EW63) elliptical wave guide standard jacket. **ALL waveguide needs to be pressurized. Add sku# 576827 to order or worksheet.
MFG Part Number: EW63
5.925-7.125 Waveguide
In Stock - Qty: 3All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.67 lbs |
|---|---|
| Dimensions | 12.00 × 2.00 × 2.00 in |
| Brand | CommScope |
| Model | EW63 |
| GTIN | 646444331913 |
Install Temp Range (F) - Not Specified
Manufacturer - CommScope
Operation Band - 5.925-7.125 GHz
Attenuation/100 ft @ 6.4 GHz - 1.4 dB
Attenuation/100 ft @ 7.1 GHz - 1.32 dB
O.D. (in) Minor Axis - 1.16 in
Maximum Length For 1 Hoist Grip - 330 ft
O.D. (in) Major Axis - 2.01 in
Standard Hanger Spacing (ft) - 3.5' @ 125 mph
RF Impedance - 50 Ohms
Qty/ Uom - 1 Foot
Bending Radius H-Plane - 20 in
Bending Radius E-Plane - 7 in
Attenuation/100 ft @ 5.9 GHz - 1.49 dB
Maximum Operating Pressure - 10
Weight (approximate lbs/ft) - 0.51
EW63-Spec-Sheet
Manufacturer - CommScope
Operation Band - 5.925-7.125 GHz
Attenuation/100 ft @ 6.4 GHz - 1.4 dB
Attenuation/100 ft @ 7.1 GHz - 1.32 dB
O.D. (in) Minor Axis - 1.16 in
Maximum Length For 1 Hoist Grip - 330 ft
O.D. (in) Major Axis - 2.01 in
Standard Hanger Spacing (ft) - 3.5' @ 125 mph
RF Impedance - 50 Ohms
Qty/ Uom - 1 Foot
Bending Radius H-Plane - 20 in
Bending Radius E-Plane - 7 in
Attenuation/100 ft @ 5.9 GHz - 1.49 dB
Maximum Operating Pressure - 10
Weight (approximate lbs/ft) - 0.51
EW63-Spec-Sheet
