5/8″ Foam Cable

Out of Stock

Out of stock

All orders come with tracking information
and guaranteed shipping.

Description

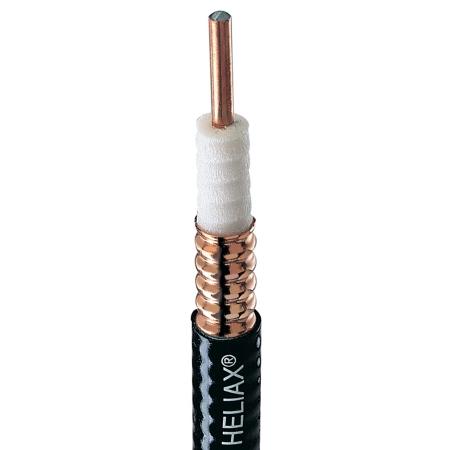

ANDREW 5/8″ Foam dielectric cable. Standard jacket. 50 ohms.

MFG Part Number: LDF4.5-50

Features

Weight 0.28 lbs
Dimensions 12.00 × 1.00 × 1.00 in
Brand CommScope
Model LDF4.5-50
GTIN 646444661379
DC Resistance (ctr/shld) Ohms - 0.15/0.42
Average Power @ 50 MHz - 7.36 kW
Peak Power - 62 kW
Bending Moment - 2.8 lb-ft
Minimum Bending Radius - 8 in
Strip Tool - TESSCO #417183
Attenuation/100 ft @ 894 MHz - 1.54 dB
Attenuation/100 ft @ 30 MHz - 0.254 dB
Inner Conductor - Copper Clad Aluminum
VOP - 89 %
Average Power @ 800 MHz - 1.45 kW
Attenuation/100 ft @ 960 MHz - 1.6 dB
Diameter Over Jacket - 0.865 in
Attenuation/100 ft @ 450 MHz - 1.05 dB
Flat Plate Crush Strength - 70 PSI
Manufacturer - CommScope
Attenuation/100 ft @ 150 MHz - 0.586 dB
Tensile Strength - 800 lb
Cable Weight Per Foot - 0.15 lb
Inductance - 0.057 µH/ft
Capacitance Per Foot - 23.2 pF
Average Power @ 450 MHz - 2.31 kW
Attenuation/100 ft @ 1920 MHz - 2.39 dB
RF Impedance - 50 Ohms
Attenuation/100 ft @ 824 MHz - 1.47 dB
Qty/ Uom - 1 Foot
Average Power @ 894 MHz - 1.54 kW
Outer Conductor Material - Copper
Average Power @ 960 MHz - 1.6 kW
Attenuation/100 ft @ 2.0 GHz - 2.44 dB
Attenuation/100 ft @ 1700 MHz - 2.22 dB
Attenuation/100 ft @ 50 MHz - 0.33 dB
Average Power @ 30 MHz - 9.57 kW
