Description
EMR 460-470 MHz mobile duplexer. 50 watts 70dB isolation 4.6-6 MHz sep. 1.2dB max insert loss. N/F term. Tessco tune. Specify TX & RX.
MFG Part Number: 65316-0/MC(5G)

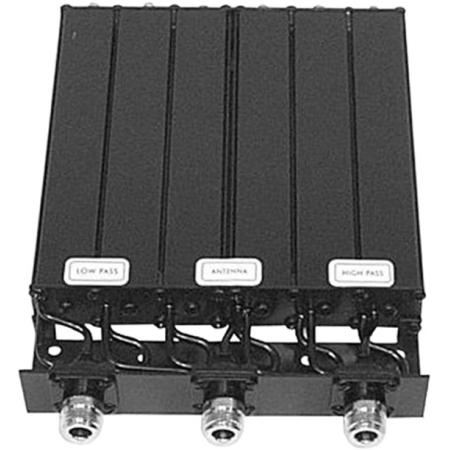

460-470 Mobile Duplexer
In Stock - Qty: 26All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 4.05 lbs |
|---|---|
| Dimensions | 13.00 × 13.00 × 4.00 in |
| Brand | EMR Corporation |
| Model | 65316-0/MC(5G) |
| GTIN | 646444467179 |
Qty/ Uom - 1 Each
Minimum Isolation - 70 dB
Maximum VSWR - 1.25:1
Finish - Painted, Black
Insertion Loss (Rx/Ant-dB) - 1.2
Manufacturer - EMR Corporation
Number of Cavities - 6
Operating Temperature Range - -30 - 60 deg C
Tuned Frequency (MHz) - 462.500 / 467.500
Item Width - 6.125 in
Frequency Range - 460-470 MHz
RF Connectors - N Female
Tuning Method - TESSCO or Field Tune
Cavity Size - 2 in
Item Height - 9.5 in
Insertion Loss (Tx/Ant-dB) - 1.2
Item Length - 1.25 in
Maximum Power Input - 50 W
Minimum Separation - 4.6 MHz
Spec-Sheet
Minimum Isolation - 70 dB
Maximum VSWR - 1.25:1
Finish - Painted, Black
Insertion Loss (Rx/Ant-dB) - 1.2
Manufacturer - EMR Corporation
Number of Cavities - 6
Operating Temperature Range - -30 - 60 deg C
Tuned Frequency (MHz) - 462.500 / 467.500
Item Width - 6.125 in
Frequency Range - 460-470 MHz
RF Connectors - N Female
Tuning Method - TESSCO or Field Tune
Cavity Size - 2 in
Item Height - 9.5 in
Insertion Loss (Tx/Ant-dB) - 1.2
Item Length - 1.25 in
Maximum Power Input - 50 W
Minimum Separation - 4.6 MHz
Spec-Sheet
