Description

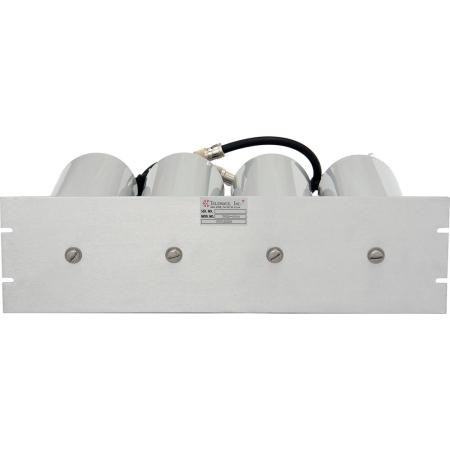

TELEWAVE 450-470 MHz rack mount duplexer Pass/reject. 5.0 MHz separation. Four cavity. 90db isol. 1dB loss. N/f conn. *TESSCO tune or field tune.
MFG Part Number: TPRD-4544
450-470 Duplexer
In Stock - Qty: 12All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 14.91 lbs |
|---|---|
| Dimensions | 22.00 × 17.00 × 10.00 in |
| Brand | Telewave, Inc. |
| Model | TPRD-4544 |
| GTIN | 729198854119 |
Maximum VSWR - 1.2:1
Item Height - 5-1/4 in
Minimum Isolation - 90 dB
Minimum Separation - 5
Item Length - 12 in
Item Width - 19 in
Number of Cavities - 4
Frequency Range - 450-470 MHz
Qty/ Uom - 1 Each
Insertion Loss (Tx/Ant-dB) - 1.0
Finish - Gray
Cavity Size - 4 in
RF Connectors - N Female
Operating Temperature Range - -30-70 deg C
Maximum Power Input - 250 W
Manufacturer - Telewave, Inc.
Tuning Method - TESSCO or Field Tune
Insertion Loss (Rx/Ant-dB) - 1.0
TPRD-4544-Spec-Sheet
Item Height - 5-1/4 in
Minimum Isolation - 90 dB
Minimum Separation - 5
Item Length - 12 in
Item Width - 19 in
Number of Cavities - 4
Frequency Range - 450-470 MHz
Qty/ Uom - 1 Each
Insertion Loss (Tx/Ant-dB) - 1.0
Finish - Gray
Cavity Size - 4 in
RF Connectors - N Female
Operating Temperature Range - -30-70 deg C
Maximum Power Input - 250 W
Manufacturer - Telewave, Inc.
Tuning Method - TESSCO or Field Tune
Insertion Loss (Rx/Ant-dB) - 1.0
TPRD-4544-Spec-Sheet
