Description

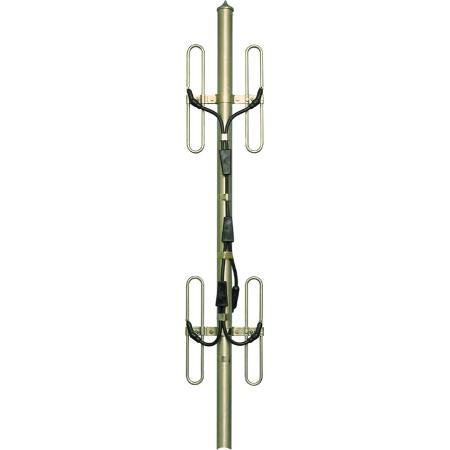

DECIBEL 450-470 MHz broadband antenna. 3.8dB omni/ 5dB offset gain 250 watts. Includes harness w/ N male term. and mounting hardware. Omni pattern.
MFG Part Number: DB404-B
450-470 3.8dB/5dB Dipole
In Stock - Qty: 237All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 21.50 lbs |
|---|---|
| Dimensions | 70.00 × 15.00 × 10.00 in |
| Brand | CommScope |
| Model | DB404-B |
| GTIN | 729198663926 |
Connector Placement - Pigtail
Item Weight - 14 lb
Vertical Beamwidth - 27 deg
Antenna Pattern - Omnidirectional
Maximum Power - 250 W
Tuned Frequency (MHz) - 450-470
RF Connectors - N Male
Gain dBd - 3.8 dBd
Gain dBi - 5.9 dBi
Maximum VSWR - 1.5:1
Maximum Rated Wind Velocity - 100 mile/h
Horizontal Beamwidth - 360 deg
Manufacturer - CommScope
Polarization - Vertical
Type of Hardware Included - Pipe Mount (1.25-3.5 in)
Jumper Included - Yes
Qty/ Uom - 1 Each
Specific Frequency - 450-470 MHz
Item Length - 60 in
Lightning Protection - DC Ground
DB404-B-Spec-Sheet
Item Weight - 14 lb
Vertical Beamwidth - 27 deg
Antenna Pattern - Omnidirectional
Maximum Power - 250 W
Tuned Frequency (MHz) - 450-470
RF Connectors - N Male
Gain dBd - 3.8 dBd
Gain dBi - 5.9 dBi
Maximum VSWR - 1.5:1
Maximum Rated Wind Velocity - 100 mile/h
Horizontal Beamwidth - 360 deg
Manufacturer - CommScope
Polarization - Vertical
Type of Hardware Included - Pipe Mount (1.25-3.5 in)
Jumper Included - Yes
Qty/ Uom - 1 Each
Specific Frequency - 450-470 MHz
Item Length - 60 in
Lightning Protection - DC Ground
DB404-B-Spec-Sheet
