Description

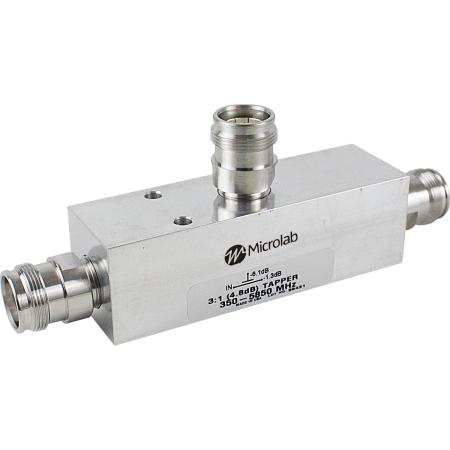

MICROLAB's DN-x4FE series of tappers unevenly split high power cellular signals in fixed ratios from 1000:1 – 2:1 with minimal reflections or loss over the key wireless bands in the range 350 – 5,930 MHz, (there is no coupling 1,550 – 1,650 MHz). The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands, even down to a 2:1 split. The lightweight design allows easy attachment to a wall using the supplied bracket. Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced. See DN-x4FN, and DN-x4FD series for similar tappers with N, and 7/16 connectors.Technical Specs
Features
- Weight 1.11 lbs
- Dimensions 7.5 * 4.5 * 3.25 in
- Brand Microlab/FXR
- Model DN-04FE
