Description

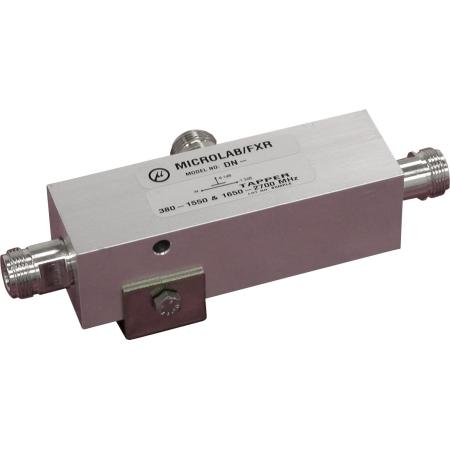

This series of tappers unevenly split high power cellular signals in fixed ratios from 1000:1 – 2:1 with minimal reflections or loss over the key wireless bands in the range 350 – 5,850 MHz, (there is no coupling 1550 – 1650 MHz). The innovative asymmetric design ensures an excellent input VSWR and coupling flatness across the specified bands, even down to a 2:1 split. The lightweight design allows easy attachment to a wall using the supplied bracket. Designed with only a few solder joints and an air dielectric, loss is minimized and reliability enhanced. Outdoor rated with N-type connectors. Available with 7/16 DIN connectors as DN-B12. See DN-x4FC series for similar tappers with 4.1-9.5 DIN "Mini-DIN" connectors. Low PIM -153 dBc (2 x +43 dBm tones).Technical Specs
Features
- Weight 1.19 lbs
- Dimensions 7.75 * 4.5 * 3.25 in
- Brand Microlab/FXR
- Model DN-B21
