3/8″ Foam Heliax Cable

In Stock - Qty: 2

$1.43

All orders come with tracking information
and guaranteed shipping.

Description

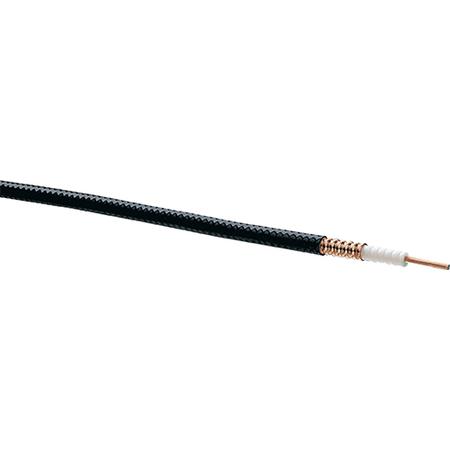

ANDREW LDF2-50 3/8″ foam dielectric cable. 50 ohms annular corrugated copper outer and copper clad aluminum center conductors. Priced per foot.

MFG Part Number: LDF2-50

Features

Weight 0.08 lbs
Dimensions 12.00 × 1.00 × 1.00 in
Brand CommScope
Model LDF2-50
GTIN 646444581394
Manufacturer - CommScope
Attenuation/100 ft @ 150 MHz - 1.29 dB
Diameter Over Jacket - 0.44 in
VOP - 88 %
Average Power @ 450 MHz - 1.02 kW
Minimum Bending Radius - 3.75 in
Peak Power - 15.6 kW
Attenuation/100 ft @ 50 MHz - 0.73 dB
Cable Weight Per Foot - 0.08 lb
Bending Moment - 1.4 lb-ft
Flat Plate Crush Strength - 110 PSI
DC Breakdown Voltage - 2500 V
Inner Conductor - Copper Clad Aluminum
Attenuation/100 ft @ 1700 MHz - 4.72 dB
Attenuation/100 ft @ 960 MHz - 3.44 dB
RF Impedance - 50 Ohms
Outer Conductor Material - Copper
Attenuation/100 ft @ 30 MHz - 0.563 dB
Qty/ Uom - 1 Foot
Attenuation/100 ft @ 894 MHz - 3.31 dB
Average Power @ 894 MHz - 0.704 kW
Strip Tool - TESSCO# 411530
Average Power @ 30 MHz - 4.14 kW
Capacitance Per Foot - 23 pF
Inductance - 0.058 µH/ft
DC Resistance (ctr/shld) Ohms - 1.06/0.87
Average Power @ 800 MHz - 0.748 kW
Average Power @ 960 MHz - 0.678 kW
Average Power @ 50 MHz - 3.19 kW
Tensile Strength - 250 lb
Attenuation/100 ft @ 450 MHz - 2.29 dB
Attenuation/100 ft @ 1920 MHz - 4.92 dB
Attenuation/100 ft @ 2.0 GHz - 5.17 dB
Attenuation/100 ft @ 824 MHz - 3.17 dB

LDF2-50-Spec-Sheet
