1/4″ Superflexible Cable

In Stock - Qty: 12

$1.78

All orders come with tracking information
and guaranteed shipping.

Description

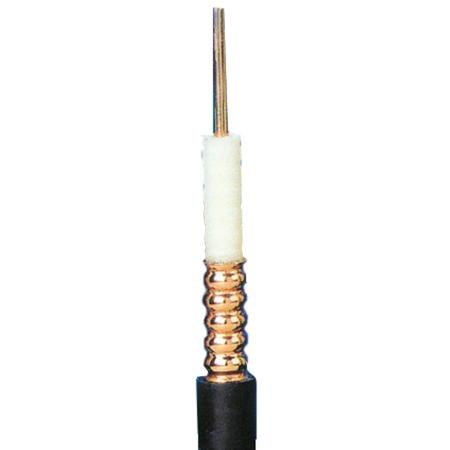

RFS SCF14-50J 1/4″ super flexible coaxial cable. 50 ohms. Corrugated copper outer & copper-clad aluminum center conductors. Priced per foot.

MFG Part Number: SCF14-50J

Features

Weight 0.05 lbs
Dimensions 12.00 × 1.00 × 1.00 in
Brand RFS
Model SCF14-50J
GTIN 729198304263
Manufacturer - RFS
Average Power @ 50 MHz - 1.62 kW
Average Power @ 450 MHz - 0.52 kW
Minimum Bending Radius - 1 in
Peak Power - 6.4 kW
Attenuation/100 ft @ 50 MHz - 1.24 dB
Cable Weight Per Foot - 0.05 lb
Average Power @ 960 MHz - 0.345 kW
DC Resistance (ctr/shld) Ohms - 3.17/2.01
Bending Moment - 0.8 lb-ft
Flat Plate Crush Strength - 100 PSI
DC Breakdown Voltage - 1.6 kV
Attenuation/100 ft @ 150 MHz - 2.19 dB
Average Power @ 30 MHz - 2.09 kW
Tensile Strength - 135 lb
Attenuation/100 ft @ 2.0 GHz - 8.69 dB
Average Power @ 894 MHz - 0.359 kW
Qty/ Uom - 1 Foot
VOP - 82 %
Attenuation/100 ft @ 1700 MHz - 7.94 dB
Average Power @ 800 MHz - 0.382 kW
Attenuation/100 ft @ 960 MHz - 5.81 dB
RF Impedance - 50 Ohms
Outer Conductor Material - Copper
Attenuation/100 ft @ 824 MHz - 5.35 dB
Attenuation/100 ft @ 450 MHz - 3.88 dB
Diameter Over Jacket - 0.31 in
Inductance - 0.061 µH/ft
Capacitance Per Foot - 25 pF
Attenuation/100 ft @ 1920 MHz - 8.5 dB
Attenuation/100 ft @ 894 MHz - 5.6 dB
Attenuation/100 ft @ 30 MHz - 0.96 dB
Inner Conductor - Copper Clad Aluminum

Technical-specifications-for-SCF14-50J
