Description

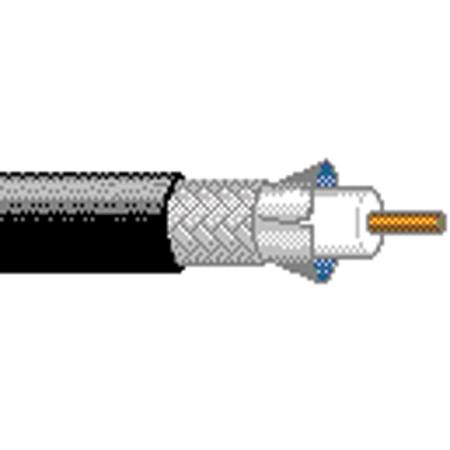

BELDEN RF240 coaxial cable. 50 ohms. Sized to fit RG8X/LMR240 conn. Soild center conductor. Foil and braid shield. Polyethylene jacket. Sold per foot.
MFG Part Number: RF240
1/4″ RF240 Coaxial Cable
In Stock - Qty: 370All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.04 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Belden |
| Model | RF240 |
| GTIN | 729198863869 |
Center Conductor Diameter - 0.057 in
Center Conductor Material - Copper
Loss @ 50 Mhz - 1.6
Loss @ 900 MHz - 7 dB
Sold By - per foot
Center Conductor Construction - Solid
Shield % - 100% foil + 95% TC
Strip Tool - 12838, 63427, or 494357
Nominal Core O.D. - .150
VOP - 86 %
Nominal O.D. - 0.24 in
Manufacturer - Belden
Loss @ 400 MHz - 4.57 dB
Loss @ 100 MHz - 2.2 dB
Nominal Capacitance (pF/ft) - 23.0
Dielectric Insulation - FEP
Other Spec - Dir Bur / RoHS
Qty/ Uom - 1 Foot
Cable Type - RF-240
Center Conductor Material - Copper
Loss @ 50 Mhz - 1.6
Loss @ 900 MHz - 7 dB
Sold By - per foot
Center Conductor Construction - Solid
Shield % - 100% foil + 95% TC
Strip Tool - 12838, 63427, or 494357
Nominal Core O.D. - .150
VOP - 86 %
Nominal O.D. - 0.24 in
Manufacturer - Belden
Loss @ 400 MHz - 4.57 dB
Loss @ 100 MHz - 2.2 dB
Nominal Capacitance (pF/ft) - 23.0
Dielectric Insulation - FEP
Other Spec - Dir Bur / RoHS
Qty/ Uom - 1 Foot
Cable Type - RF-240
