Description
TIMES MICROWAVE DC-2.5 GHz 1/2″radiating cable with PVC jacket. 50 ohm. Utilizes foil for ground no-braided shield. Uses standard EZ-600-NMH-D Connectors.
MFG Part Number: T-RAD-600-PVC

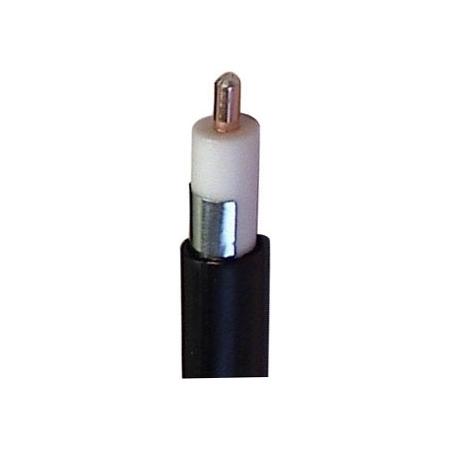

1/2″ T-Rad 600 PVC Cable
In Stock - Qty: 50All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.09 lbs |
|---|---|
| Dimensions | 12.00 × 1.00 × 1.00 in |
| Brand | Times Microwave Systems |
| Model | T-RAD-600-PVC |
| GTIN | 646444533560 |
Manufacturer - Times Microwave Systems
PN Note - PVC Jacket
Minimum Bending Radius - 1.5 in
Cable Weight Per Foot - 0.09 lb
Coupling Loss 50% @ 150 MHz - 54 dB
Fire Rating - Riser
Coupling Loss 50% @ 450 MHz - 61 dB
Coupling Loss 50% @ 1900 MHz - 69 dB
Attenuation/100 ft @ 150 MHz - 1.34 dB
Jacket Material - PVC
Attenuation/100 ft @ 1900 MHz - 5.3 dB
Attenuation/100 ft @ 1800 MHz - 5.2 dB
Coupling Loss 50% @ 900 MHz - 68 dB
Attenuation/100 ft @ 2400 MHz - 6.4 dB
Coupling Loss 50% @ 2400 MHz - 67 dB
Strip Tool - TESSCO #449665
Qty/ Uom - 1 Foot
VOP - 86 %
RF Impedance - 50 Ohms
Attenuation/100 ft @ 450 MHz - 2.22 dB
Coupling Loss 50% @ 1800 MHz - 69 dB
Diameter Over Jacket - 0.53 in
Attenuation/100 ft @ 900 MHz - 3.35 dB
PN Note - PVC Jacket
Minimum Bending Radius - 1.5 in
Cable Weight Per Foot - 0.09 lb
Coupling Loss 50% @ 150 MHz - 54 dB
Fire Rating - Riser
Coupling Loss 50% @ 450 MHz - 61 dB
Coupling Loss 50% @ 1900 MHz - 69 dB
Attenuation/100 ft @ 150 MHz - 1.34 dB
Jacket Material - PVC
Attenuation/100 ft @ 1900 MHz - 5.3 dB
Attenuation/100 ft @ 1800 MHz - 5.2 dB
Coupling Loss 50% @ 900 MHz - 68 dB
Attenuation/100 ft @ 2400 MHz - 6.4 dB
Coupling Loss 50% @ 2400 MHz - 67 dB
Strip Tool - TESSCO #449665
Qty/ Uom - 1 Foot
VOP - 86 %
RF Impedance - 50 Ohms
Attenuation/100 ft @ 450 MHz - 2.22 dB
Coupling Loss 50% @ 1800 MHz - 69 dB
Diameter Over Jacket - 0.53 in
Attenuation/100 ft @ 900 MHz - 3.35 dB
