Description

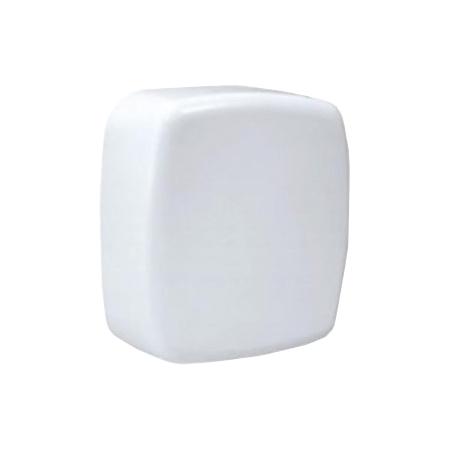

GALTRONICS 698-960/1710-2700 MHz Beam Directional MIMO antenna. 4.3-10 DIN Female Back Mount. 62-45-09 mounting bracket included.
MFG Part Number: 04127261-05977-1
EXTENT D5503i Sector DIN
In Stock - Qty: 31All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 9.60 lbs |
|---|---|
| Dimensions | 16.00 × 16.00 × 10.00 in |
| Brand | Galtronics USA, Inc. |
| Model | 04127261-05977-1 |
| GTIN | 729198043049 |
RF Connectors - 4.3-10 Female
Minimum Front Back Ratio - 20 dB
Gain dBi - 8.0 dBi, 8.8 dBi, 10.0 dBi, 10.5 dBi, 11.0 dBi, 11.5 dBi, 11.5 dBi
Maximum VSWR - 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1
Maximum Power - 250 W
Type of Hardware Included - Mounting Bracket (Part # 62-45-09)
Qty/ Uom - 1 Each
Specific Frequency - 698-750 MHz, 750-820 MHz, 820-960 MHz, 1710-1910 MHz, 1910-2180 MHz, 2180-2700 MHz
Maximum Rated Wind Velocity - 150 mile/h
Horizontal Beamwidth - 67 deg, 63 deg, 65 deg, 65 deg, 58 deg, 50 deg, 50 deg
Manufacturer - Galtronics USA, Inc.
Minimum Front Back Ratio - 20 dB
Gain dBi - 8.0 dBi, 8.8 dBi, 10.0 dBi, 10.5 dBi, 11.0 dBi, 11.5 dBi, 11.5 dBi
Maximum VSWR - 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1, 1.7:1
Maximum Power - 250 W
Type of Hardware Included - Mounting Bracket (Part # 62-45-09)
Qty/ Uom - 1 Each
Specific Frequency - 698-750 MHz, 750-820 MHz, 820-960 MHz, 1710-1910 MHz, 1910-2180 MHz, 2180-2700 MHz
Maximum Rated Wind Velocity - 150 mile/h
Horizontal Beamwidth - 67 deg, 63 deg, 65 deg, 65 deg, 58 deg, 50 deg, 50 deg
Manufacturer - Galtronics USA, Inc.
