Description

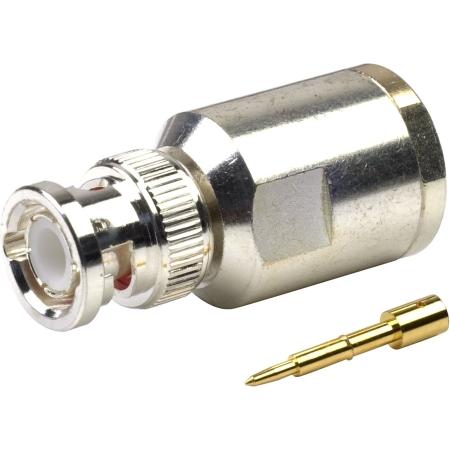

RF INDUSTRIES BNC male connector for 9913 9914 8214 3315 LMR400 cables. Silver plated body with gold center pin. Solder center pin clamp on braid.
MFG Part Number: RFB-1101-1SI
BNC Male-9913,9914,LMR400
In Stock - Qty: 28All orders come with tracking information
and guaranteed shipping.
Features
| Weight | 0.10 lbs |
|---|---|
| Dimensions | 2.00 × 2.00 × 1.00 in |
| Brand | RF Industries |
| Model | RFB-1101-1SI |
| GTIN | 729198760632 |
RF Connector Body Style - Straight
Material (Pin) - Gold
Strip Shield to End - 0.000
RF Connector - BNC Male
Manufacturer - RF Industries
Connection (Note) - Can crimp pin .128
Center Pin Type - Solder
RF Impedance - 50 Ohms
Frequency Range - 0-4 GHz
Strip Jacket to End - 0.375
Strip Insulation to End - 0.125
Max Voltage/Pwr - 500 Vrms
Install - 60981(1),88701(2)
For Cable - 9913, 9914, 8214, 3315 & LMR-400
Qty/ Uom - 1 Each
Insulator Material - PTFE
RFB-1101-1SI-Product-Drawing
Material (Pin) - Gold
Strip Shield to End - 0.000
RF Connector - BNC Male
Manufacturer - RF Industries
Connection (Note) - Can crimp pin .128
Center Pin Type - Solder
RF Impedance - 50 Ohms
Frequency Range - 0-4 GHz
Strip Jacket to End - 0.375
Strip Insulation to End - 0.125
Max Voltage/Pwr - 500 Vrms
Install - 60981(1),88701(2)
For Cable - 9913, 9914, 8214, 3315 & LMR-400
Qty/ Uom - 1 Each
Insulator Material - PTFE
RFB-1101-1SI-Product-Drawing
