450-470 7.1dB Gold Yagi

In Stock - Qty: 207

$159.66

All orders come with tracking information
and guaranteed shipping.

Description

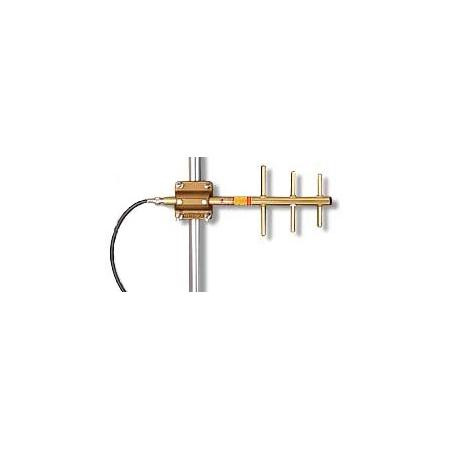

LAIRD 450-470Mhz 3 element directional antenna. 7.1 dB gain 300 watt. Direct N female termination. Mounting hardware included. Gold anodized for long life.

MFG Part Number: Y4503

Features

Weight 4.40 lbs
Dimensions 23.00 × 18.00 × 3.00 in
Brand Laird Connectivity, Inc.
Model Y4503
GTIN 729198700720
Maximum Rated Wind Velocity - 100 mile/h
Gain dBi - 9.2 dBi
Tuned Frequency (MHz) - 450-470
Gain dBd - 7.1 dBd
Vertical Beamwidth - 57 deg
Item Length - 20.2 in
Specific Frequency - 450-470 MHz
Maximum Power - 300 W
Jumper Included - No
Manufacturer - Laird External Antennas TE
Item Weight - 2 lb
RF Connectors - N Female
Maximum VSWR - 1.5:1
Type of Hardware Included - Clamp set
Horizontal Beamwidth - 72 deg
Qty/ Uom - 1 Each
Polarization - Linear
Lightning Protection - DC Ground
